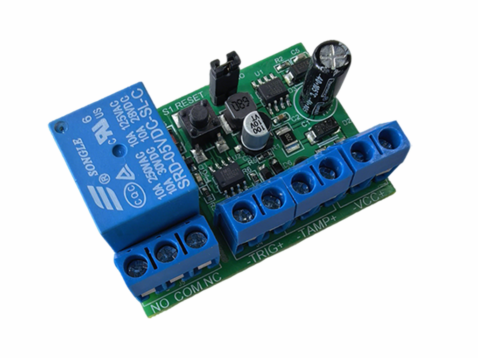

SMR-S011
E-switching tamper board
AC250V 10A
Form C 1 zone
NO/NC trigger
LED indicator
12V-24V DC
SMR-S011
Description
This device is an electronic switching unit designed to enable low voltage signal control of high power circuits while incorporating tamper detection and recovery mechanisms. It is engineered for applications requiring secure, fail safe operation, such as access control systems, industrial equipment protection, or critical infrastructure monitoring, where any unauthorised interference must be detected and addressed immediately.
The unit includes an integrated tamper switch, which may be actuated by events such as removal of a key switch. When triggered, the device enters a lockout state that disables relay control via the trigger switch.
Normal operation can only be restored by pressing the reset switch (S1), ensuring that any tamper event is acknowledged before functionality is re enabled. This design provides an additional level of protection in applications where prevention of unauthorised interference is essential.
Working volt: 12V-24V DC (±10%)
Standby current: <10mA @12V
Trigger current: <70mA @12V
Working temperature -30℃-+70℃
Numbers of relay output 1
Max switching voltage : 10A 250VAC
Max switching current: 10A (AC/DC)
Contact resistance : ≤100mΩ
Operate time : ≤100ms
Mechanical life 10,000,000 cycles
Electrical life: 100,000 cycles (rated load)
Dimensions: 50*34.5*25mm
More information
