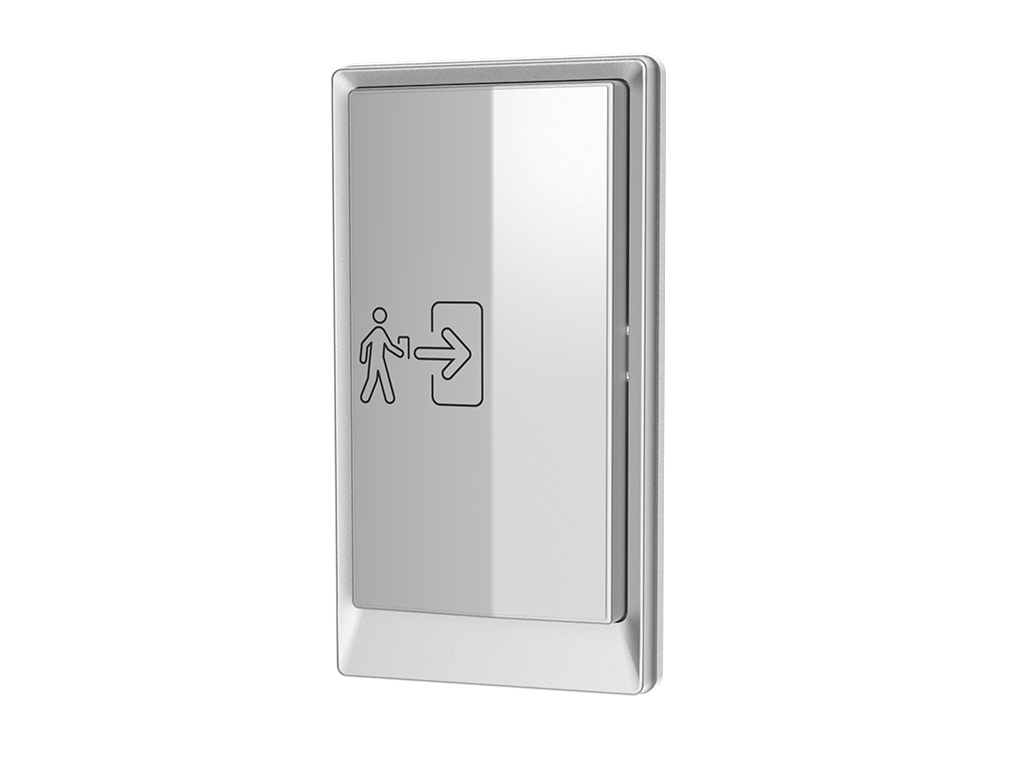

Elbow switch
Color : silver
IP67 waterproof switches
5A 125/250VAC
NO/NC/COM contacts

These modern and beautiful push buttons, also known as elbow switches, have 5A 125/250VAC single pole NO/NC/COM contacts and are optional with two poles, suitable for unlocking electrical locks, controlling automatic doors.
The big face design can be activated easily with handsfree, suitable for the kitchen, office, hospital and shopping mall use
The installation – and service- friendly fit on existing flush-mounted box. The cable tray kit is available if required.
Choice of white, black or silver with stainless steel touch plate version, other OEM colors are optional.
Design with built-in room for transmitter, this elbow switch can be easily made suitable for wireless version if required

OEM Logo and symbol are available

Elbow Switch
Color : white, black or silver with stainless steel touch plate
Single Pole Output: NO/NC/COM
Two poles optional in required
IP67 waterproof switches
5A 125/250VAC
Operating Tem: -25℃-60℃
Contact resistance:50mΩ
Mechanical Life: 1000K
Electrical Life: 50K @ 5A 125VAC
Suitable to Euro Electric Back Box
Easy Installation
4pcs Screws: PF3.5*35mm with plastic plugs
White/Black/Silver/Golden color & Stainless Steel Plate optional
Wireless Version Optional
OEM logo/symbol printing available
