Disable friendly no touch IR

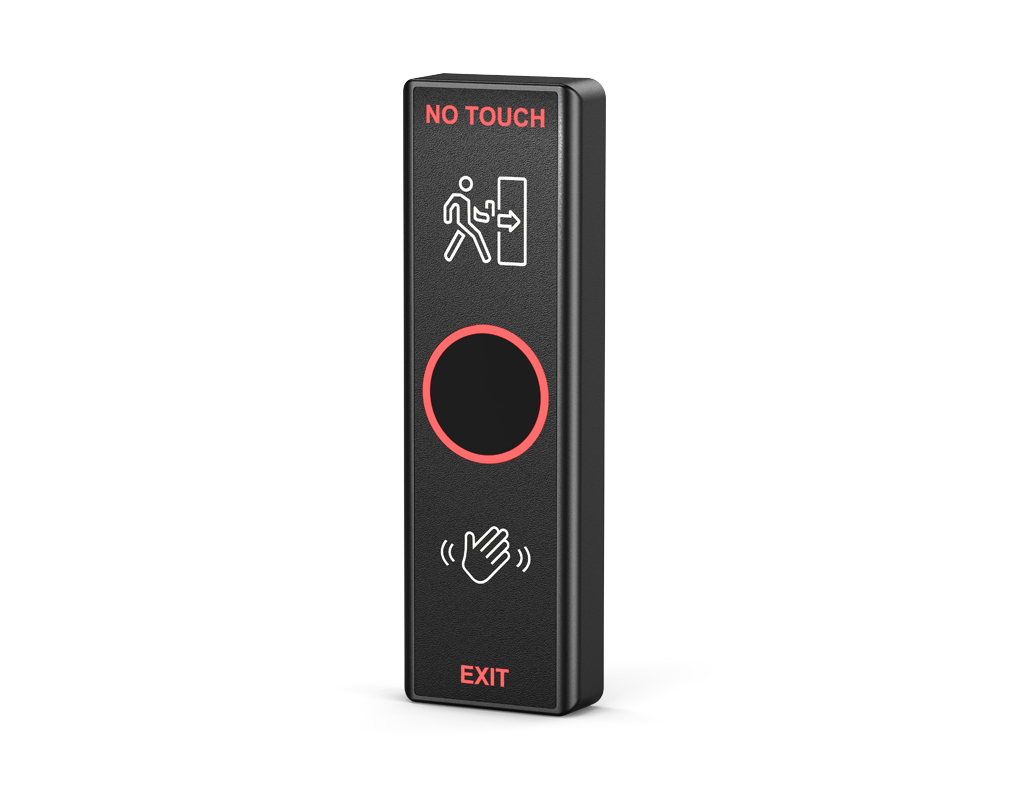

Illuminated no touch infrared sensor switch
IK10 Impact-resistant IR button
30VDC 1A
INT/EXT Control
LED ring: white/green
Buzzer ON/OFF switch
0.5-20Seconds timer delay (Pulse)
Detecting Distance: 5-30cm
12-24 VDC

These narrow, beautiful and smart illuminated IR switches are suitable for unlocking electrical locks, controlling automatic doors, parking systems, elevators and etc. The switching takes place by passing the hand in front of the switches. Since there is no contact required, it is a very simple and hygienic way of working, suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
The disable friendly design with the built-in buzzer and the bright green/red LED illumination to indicate standby/operation status.
The easy-install & 3mm thickness cable-tray design help to install fast and suitable for the different mounting surface.
The elegant design with impact-resistant PC house & big flat face is friendly for the different OEM logo/symbol/text use.

Illuminated Infrared Sensor Switch
IK10 Impact-resistant IR SWITCH
Change-Over Switch
12-24 VDC
INT/EXT Control
Buzzer ON/OFF switch
Suitable for Electric Lock and Inter-lock System Use
Green and Red LED
0.5-20Seconds timer delay (Pulse)
Detecting Distance: 5-30cm
Max. Current: 60mA
Relay output: 30VDC 1A
Mechanical life: 50,000,000 times
Electric Life: 100,000 times.
Operating Temp: -25~+55℃
IP20 weatherproof
8 Terminals Output
Size: 160mm x 50mm x 18.4mm
