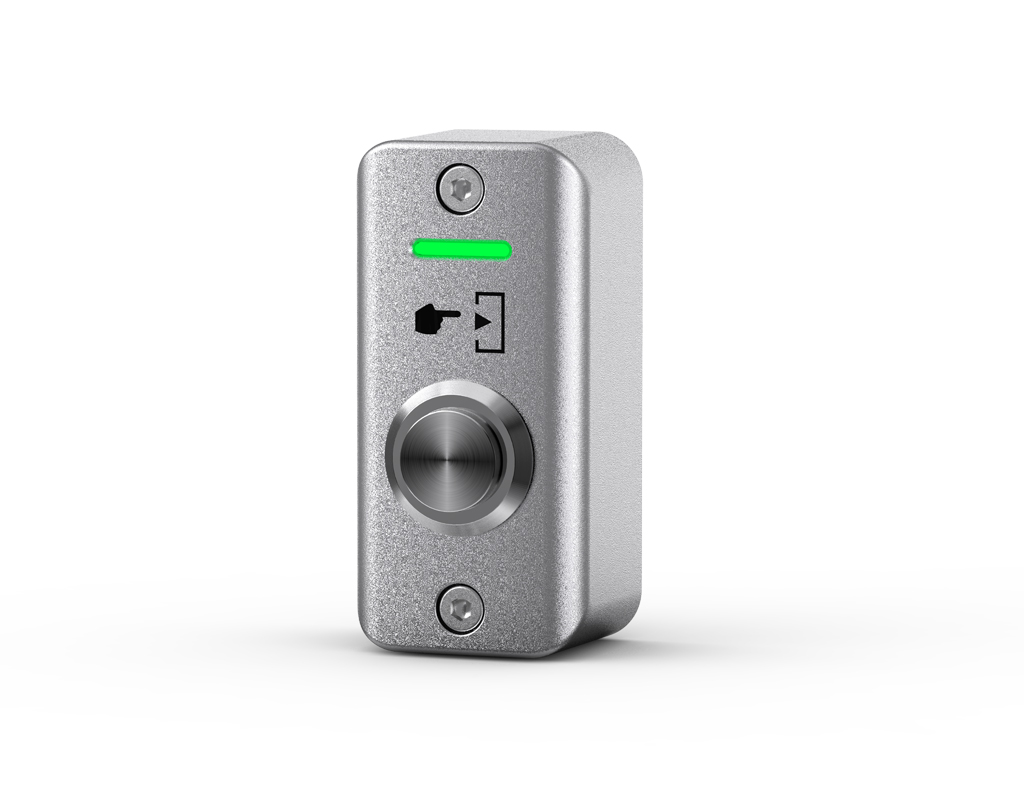

SMB-S001L

D16 stainless steel button
with mat grey pearl color zinc alloy house
Illuminated red/green LED display
vadal-resistant & weather-proof
IP67 16mm overhead button
NO/COM 3A 250V
5 screw terminals

These supper solid, high quality, small switches have 3A/250V NO/COM relay output and the bright green/red LED illumination to indicate standby/operation status, suitable for unlocking electrical locks and etc. Vandal-resistant and IP65 weatherproof, so suitable for indoor & outdoor use.

Zinc alloy with mat grey pearl color (Super nice quality)
Bracket is included for easy wiring
Torx Screws for more security
Vandal-resistant button
Suitable for Electric Locks
NO/COM with LED
LED (RED/GREEN)
3A/250V switch with IP67
Weather-proof with IP65 and ( IP66 at O ring installed)
Mechanical life: 500K
Electronic life:50K
Overhead Button with installation size: 16mm(dia)
5 Screws Terminals( 2 terminals for button,3 terminals for LED)
Size: 60 x 29 x 26mm
