Single door access controller
IP68 & IK10 Mifare illuminated reader

SMA-S003 consists of Master, reader and infrared remote control with code panel.
Master is a single door controller, can work with any type Wiegand card reader, such as EM, MIFARE, HID and CPU RFID card etc.
It uses advanced Microprocessor, with high-capacity flash memory for 1000 users. It is programmed by the supplied infrared remote control. The separate controllers ensure that the relay cannot be manipulated from the outside. In addition to unlocking electrical locks, it can also be used for other applications.
IP68 water resistant & IK10 impact resistant reader is suitable for indoor and outdoor mounting.
Self-buckle house design with 12 screw terminals for fast installation

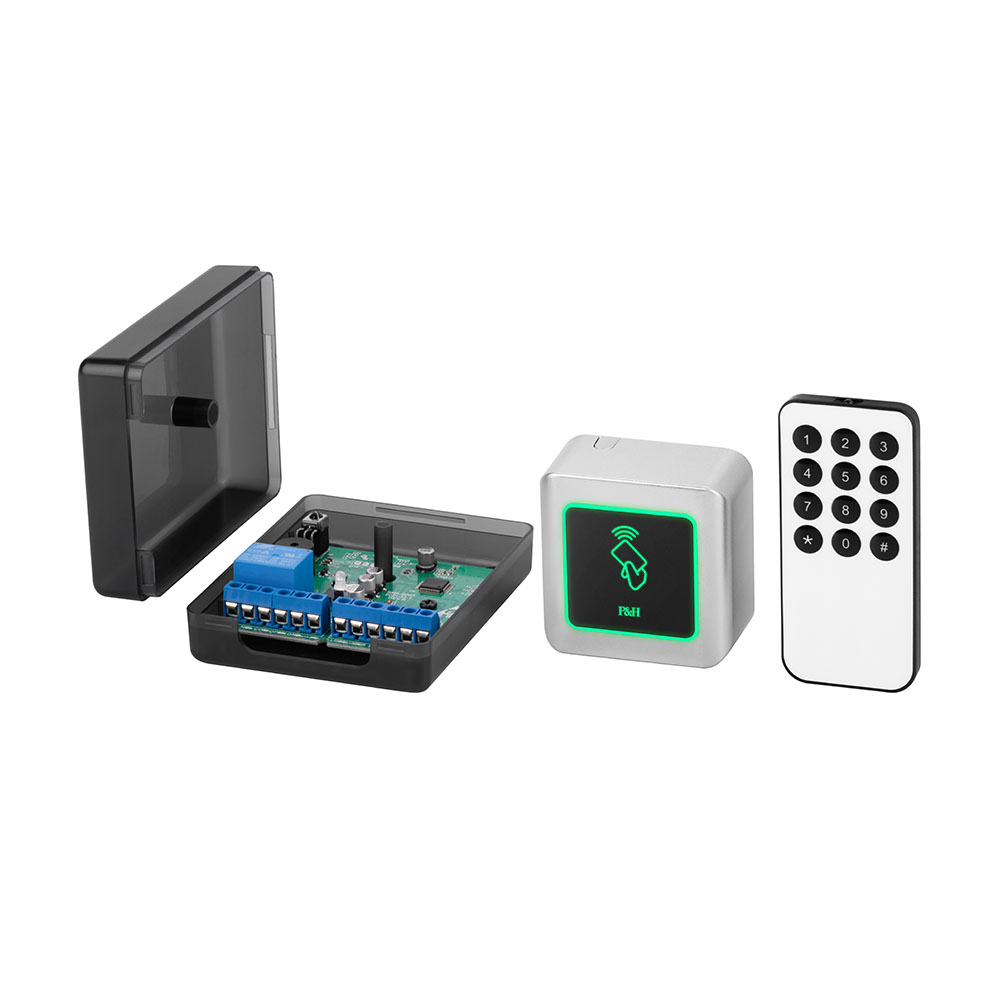

SMA-S003 master + Mifare reader + infrared remote control

A small, beautiful and smart MIFARE® card reader with Wiegand 34bit output, buzzer and illuminated backlight.
34bits wiegand data output
buzzer inside
Illuminated backlight
IP68 water resistant
IK10 impact resistant
Suitable for indoor and outdoor mounting.
3-meter UL1007 AWG26
6 copper cores shield cable
A handy knock-out ports for cable duct from center/up/bottom direction
Easy Installation & friendly wiring
OEM symbol and logo is available.
Color: pearl silver outdoor painting(standard)
or RAL7016 BLACK (optional)

a single door controller
Wiegand input: suitable for EM, MIFARE, HID, CPU RFID card, Wiegand 26-37 output reader.
uses advanced Microprocessor,
with high-capacity flash memory for 1000 users(0-999).
programmed by an infrared remote code panel.
Pulse & toggle relay, relay output NO/NC/COM 30V 3A
Pulse 0(0.5)-99 seconds’ delay
add or delete the user via infrared remote code panel.
Ultra low power: <20mA
Operating Temp: -20℃~60℃
12 Screw Terminals
Self-locking housing Design
Easy Installation & Wiring
OEM logo/symbol printing available
Color: transparent dark grey house
size: 96*74*34.5mm
