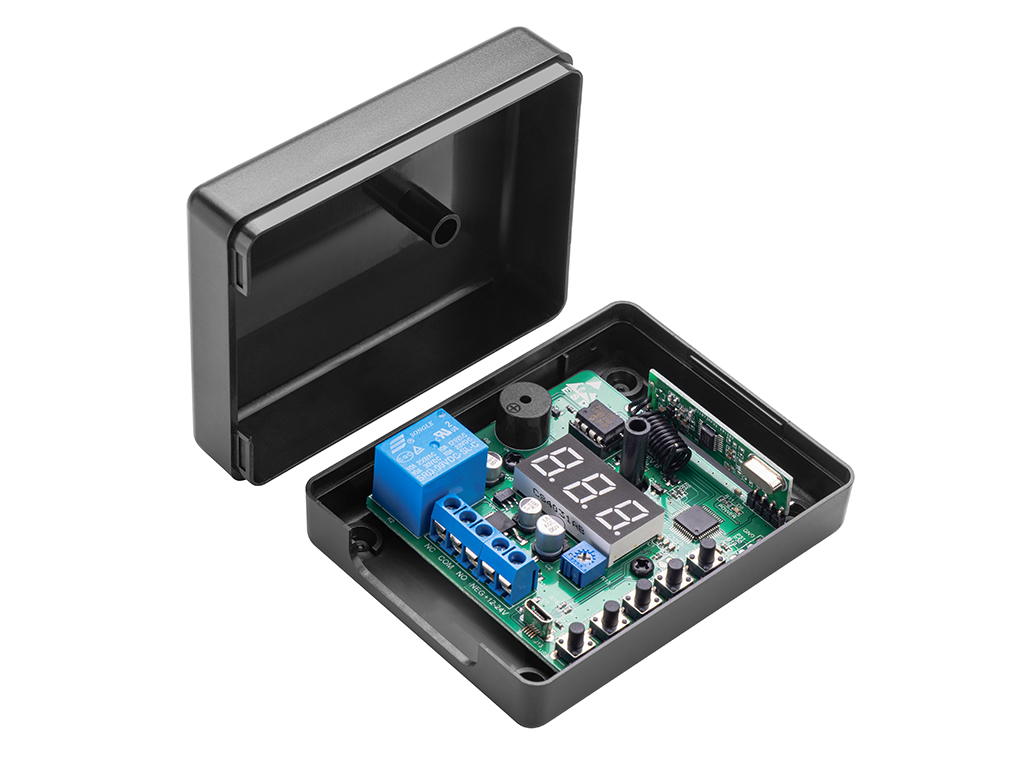

Single channel hopping code receiver
with 1000 users
PC logging software
A removable memory installation
Large format display
12V-24V DC
433MHz hopping code
encrypted transmission

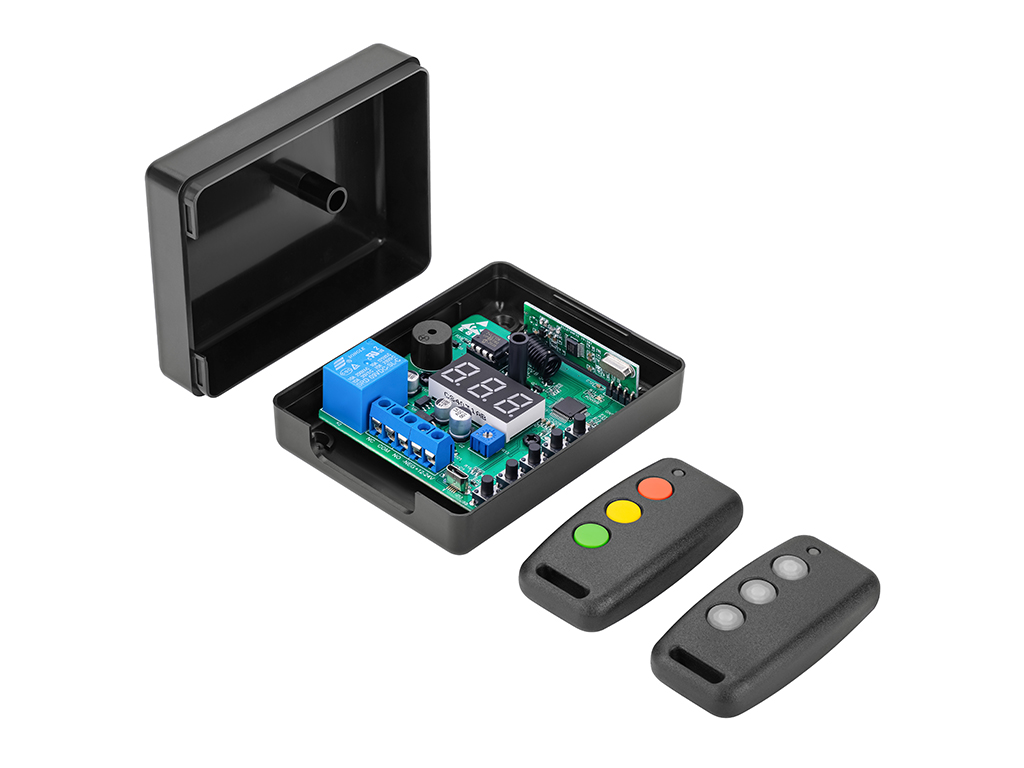

Remote Distance (open space) 100M
(fit with SMB-T009)

It is the 1000 users receiver and each user can be added/deleted independently and never influence other learned users.
A removable memory installation method, which can retain memory and fast memory recovery in some cases. For example, if the receiver is not working properly and needs to be replaced, the memory can be taken out and installed on the new receiver, no need to repeatedly learn the users, especially fo rthe receiver with a lot of learned users. Memory copy can be performed.
Add a buzzer and timer delay : 0.5-60sec (pulse version) (timer shift to infinity, then toggle version). Beeper: When the received remote control signal indicates that the remote control is low, beeper will beep three consecutive BEEPs to remind the remote control user to replace the battery in time
PC logging software : A USB communication interface is added. The expected functions are that PC software can check the user’s vacancy and usage through the USB port, and can directly control the deletion of memory, or we can save the read user data as a file, and then import the file data and write in to another receiver, or we can play a role in backing up user data and quickly restoring user data, which will help the user to get back the history memory if they did the wrong operation to delete all of users.
Large format display: 3 digit blue display with 30x16mm
1 channel, 1000 USERS
DC12-24V, 10 A relay output
5 pin screws terminals
A programmed button switch is added

Operation Voltage 12V-24V DC
Operation Current(Dynamic) <100mA @12V (Relay action) Operation Current(Static) <30mA @12V (No relay action) Operation Frequency 433.92MHz Operation Temperature -20℃-+60℃  Channel Number 1 Operation Mode PULSE/TONGGLE Operation Time Delay 0.5S-60S(PULSE) Users 1000 Relay Output 10A 30VDC Dimension 96*74*34.5mm Weight 100g Remote Distance (open space) 100M (fit with SMB-T009) LED DISPLAY Seven-segment ""8"" blue large screen “SCR” : Short display after power-on, Single Channel Receiver “PRO” : Press ‘LEARN’ button, to enter ‘PROGRAM’ Mode “STO” : Press ‘STORE’ button to store in ‘Program’ Mode. “DEL” : Press ‘ERASE’ button in ‘Program’ Mode, to delete the users. “ERA” : Long press ‘ERASE” button in ‘Program’ Mode, to delete all users’ data.
