PF009002B

These modern and beautiful push buttons, also known as elbow switches, have 5A 125/250VAC single pole NO/NC/COM contacts and are optional with two poles, suitable for unlocking electrical locks, controlling automatic doors.
Come with 433Hz hopping code encrypted transmission wireless version, transmission range in open area is 100 meters (within buildings 30 meters)
The big face design can be activated easily with handsfree, suitable for the kitchen, office, hospital and shopping mall use
The installation – and service- friendly fit on existing flush-mounted box. The cable tray kit is available if required.
Choice of white, black or silver with stainless steel touch plate version, other OEM colors are optional.

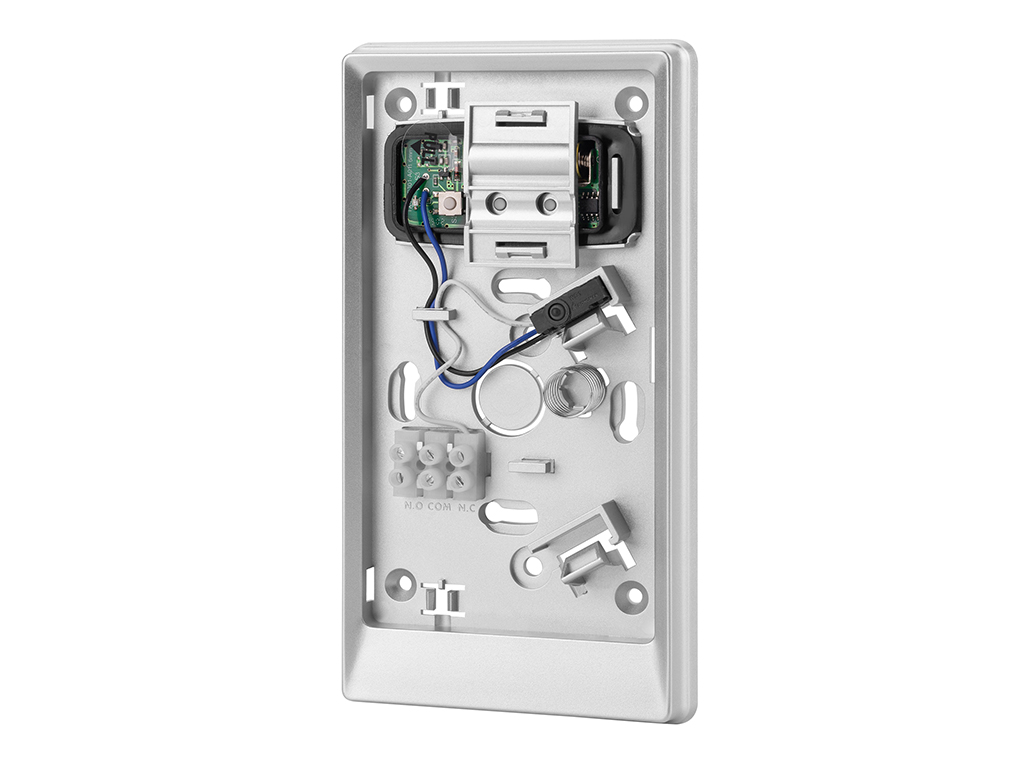

Design with built-in room for transmitter, this elbow switch can be easily made suitable for wireless version

OEM Logo and symbol are available

Wireless Elbow Switch
Color :silver with stainless steel touch plate
NO/NC/COM contact
IP67 waterproof micro switches
5A 125/250VAC
Operating Tem: -25℃-60℃
Contact resistance:50mΩ
Mechanical Life: 1000K
Electrical Life: 50K @ 5A 125VAC
Suitable to Euro Electric Back Box
Easy Installation
OEM logo/symbol printing available

Wireless Version : Operating Volt 7-13V DC
Operating Current
(Activated) <20mA @12V (press button） (Static） <1uA @12V (No button press） Frequency 433.92MHz Number of buttons 3 Battery Specification: 12V 23A LED Status ON/FLASH （When press/when press and battery<9.5V) Wireless transmit power <20dBm Size 67*32.6*15.2mm Weight 25g
