Dolphin E

Internal sounder with strobe alarm
Positive trigger
Two slectable tones
96-100dB
7mA at 24VDC
2 screws terminals output
5-30 VDC
Dolphin E

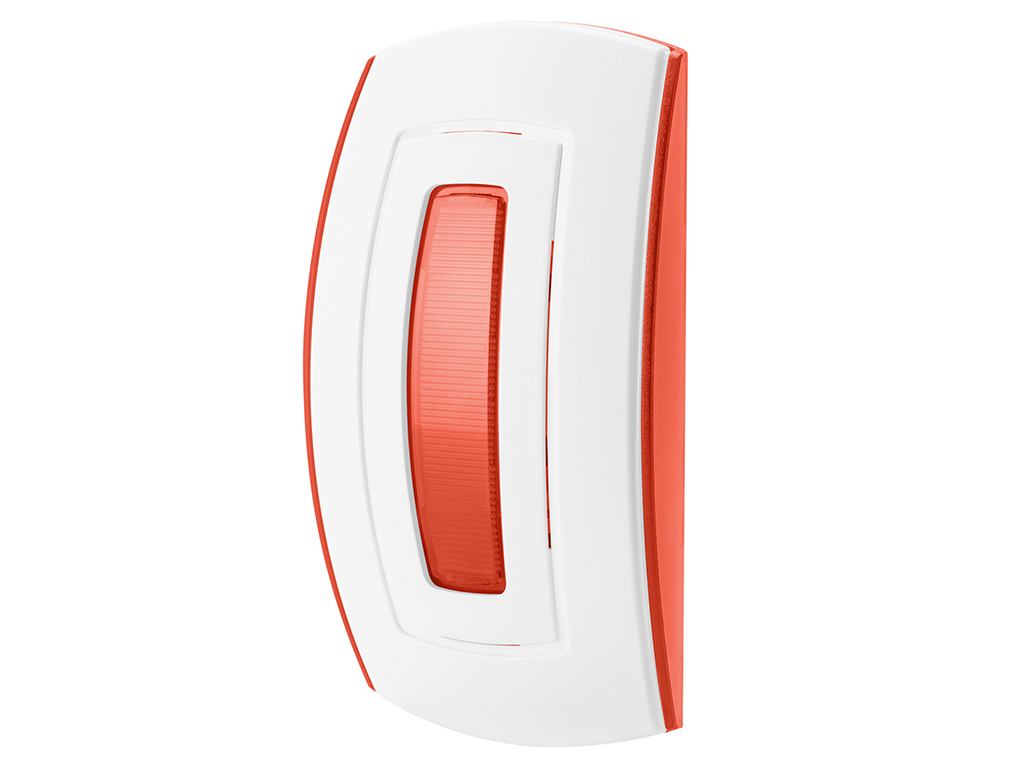

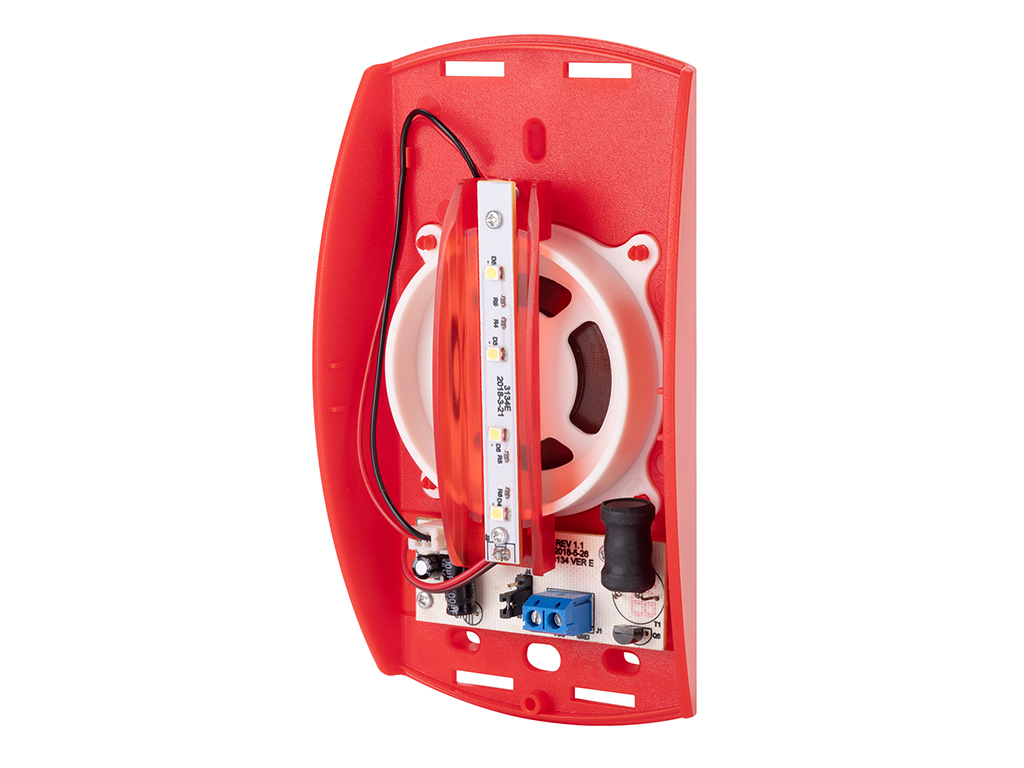

These narrow, beautiful and smart souders have high decibel in two sound sources and 4 high brightness LEDs in red strobe alarm.
Max 7mA alarm current at 24VDC, to save the system power consumption.
Wide operating voltage from 5VDC to 30VDC with stable alarm & decibel output, to suitable for different systems.

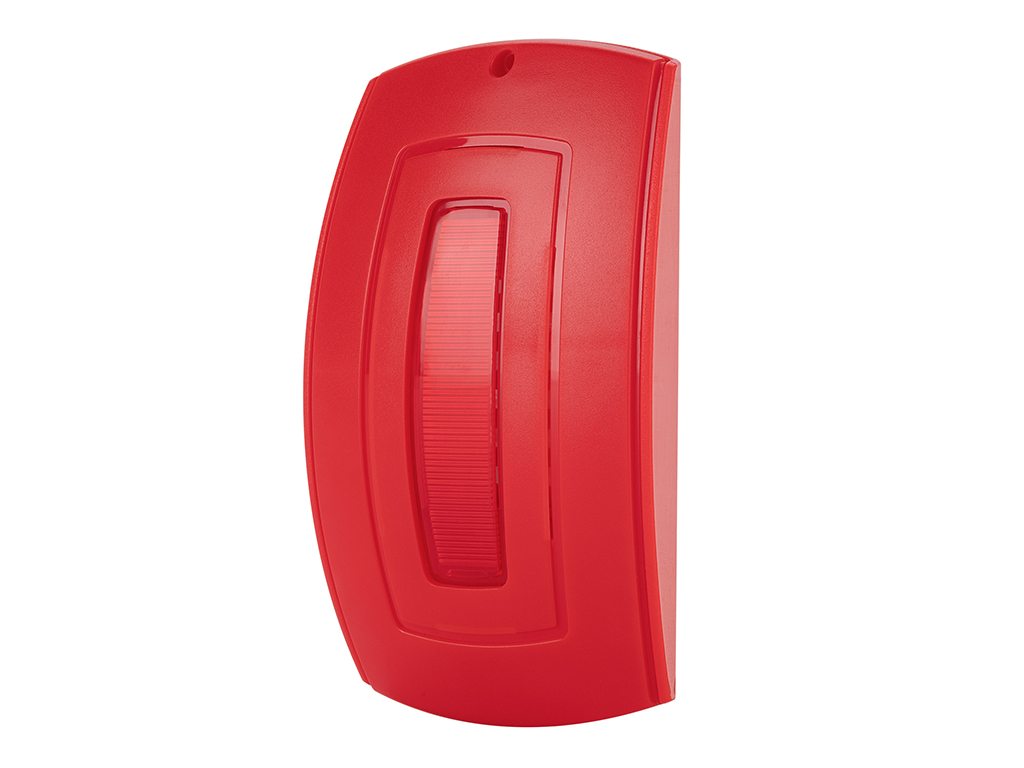

Solid red body with transparent red len.
Easy and friendly installation.

Fire alarm sounder with strobe, suitable for different brands of fire systems.
In alarm situation, the flash light and siren will be trigged together, following the control panel demands.
Operation Voltage:5-30VDC
Current: Strobe & Siren Max 7mA@24VDC
Decibel: 100 DB/1m
Frequency:2KHz-3.5KHz
IP RATE:IP40
Operation Temperature:-10℃-+50℃
Color: Solid Red + Transparent Red
Two Screw Terminals for Fast Wiring
Terminals: VCC/ GND
4 LED Flash Alerts
Sound Source: 2 types of tones optional
Sound Jumper J4: Tone 1 and Tone 2
Size: 140*85*32mm
