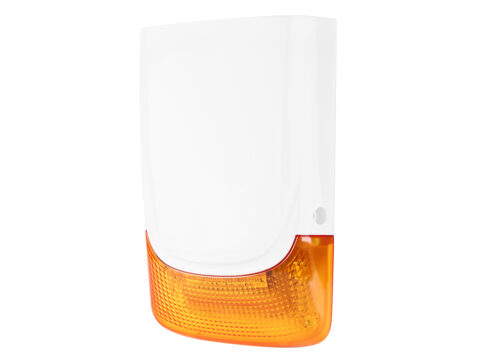

External sounder with strobe alarm
Lid, base and screws tamper protection
Piezo driver (one or two)
Positive trigger in siren and/or flash
Max 200mA 112dB
These beautiful and smart souders have high decibel and bright lights, and wall/lid/screw tamper protection with single or two piezos optional
A separate weather-proof PCB room to protect PCBA and LEDs, so suitable for ourdoor use, also friendly to easy installation and maintenance.
Adjustment tamper design, so suitable for different wall installation for example the uneven wall.
Different color len (tranparent clear/red/blue/orange) are available with clear & bright LEDS
One or two piezos external Bell Box, Battery Backup(Battery Excluded), DC9-16V,
Single piezo Drive type, SMT LED,
Alarm current less than 200A,
Alarm Sound: 112B/1M,
SIREN+：Positive Trigger for sound alarm 11V-14V DC
FLASH+：Positive Trigger for LED Flashing 11V-14V DC
GND-：Negative power supply
TAMPER：Two outputs for tamper switch.
